Wuxi Dongxia Machinery Co., Ltd. is one of the most professional manufacturers and suppliers of portable heat pump unit in China. Please feel free to buy OEM portable heat pump unit at competitive price from our factory. For custom service, contact us now.
If you are looking for Manufacturer and Supplier of heat pump spot coolers. Dongxia kindly reminds you remember to consider the size of the space you need to cool or heat, the portable heat pump unit's cooling and heating capacity, energy efficiency, and any specific features you may require when choosing a portable heat pump air conditioner for your application.
Technical Parameters
|
Power: |
115V |
|
Frequency: |
60Hz |
|
Cooling Capacity: |
11,500BTU |
|
Cooling AMPS: |
13.2A |
|
Cooling WATTS: |
1540W |
|
Heating Capacity: |
10,300BTU |
|
Heating AMPS: |
10.4A |
|
Heating WATTS: |
1180W |
|
Compressor: |
Sealed Rotary Type |
|
Water Storage Capacity: |
15L |
|
Refrigerant: |
R32 |
|
Refrigerant(Rated Charge): |
640g |
|
Discharge Pressure: |
3.2MPa |
|
Suction Pressure: |
1.3MPa |
|
Max Operating Pressure: |
4.1MPa |
|
Cooling Operating Temperature: |
18~35°C(65~95°F) |
|
Heating Operating Temperature: |
4.4~26.7°C(40~80°F) |
|
Size: |
W20.5" X D27.2 " X H41.7" |
|
Weight: |
165LB |
|
Package Weight: |
183LB |
Spare Parts Introduction
|
Callout No. |
Item |
Discription |
Standard(S) / Optional(O) |
|
1 |
Duct Connect Base |
interchangable duct base |
S |
|
2 |
Self-Supported Duct |
120mm diameter, gray plastic duct that extends from |
S |
|
3 |
Front Filter |
removable water-resist air filter (condensor) |
S |
|
4 |
Rear Filter |
removable water-resist air filter (heat exchanger) |
S |
|
5 |
Water Tank |
condense-water tank, 15L capacity |
S |
|
6 |
Drain Hose |
hose for continous-water-draining option, 1500mm length |
S |
|
7 |
Duct Connector |
Y-shape duct connector, fit for 120mm diameter duct, devide cool air into 2 directions |
O |
|
8 |
Condensate Pump |
Beckett brand condensate pump (with quick plug-in connector design) |
O |
|
9 |
Self-Supported Duct |
120mm diameter, gray plastic duct that extends from |
O |
|
10 |
Self-Supported Duct |
300mm diameter plastic duct that extends 800mm to 3000mm in length |
O |
Product Size
Product Advantage
Portable heat pump units have several advantages：
One key advantage is their portability, which allows you to easily move them from room to room as needed. This flexibility can help you save on energy costs by only heating or cooling the specific areas you are using at any given time.
Additionally, portable heat pump units are often more cost-effective than central HVAC systems, both in terms of upfront costs and installation expenses. They are also relatively easy to set up and maintain.
Overall, The portable industrial heat pumps are developed and produced by Dongxia provide a convenient and efficient way to control the temperature in your living or working space.

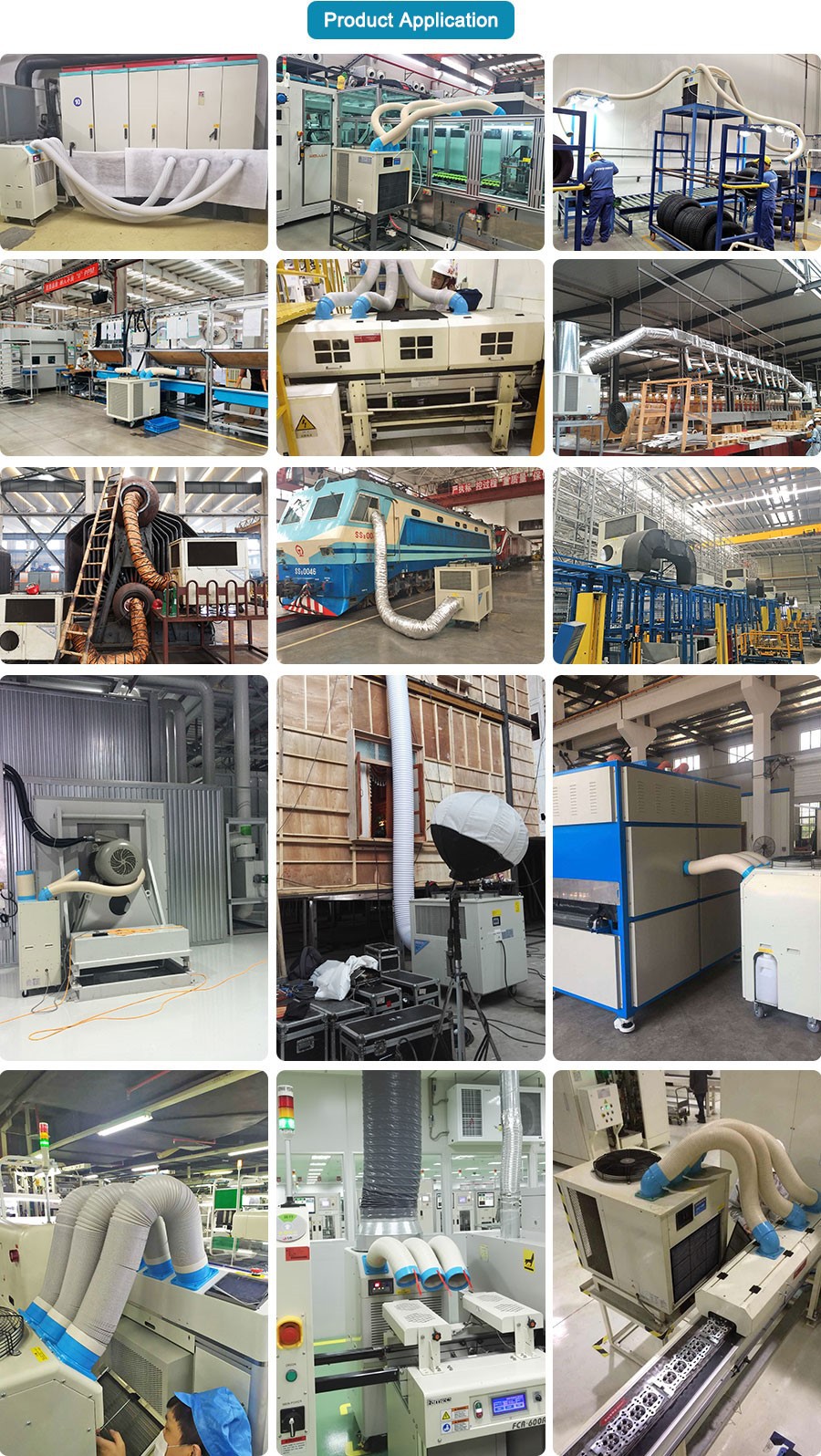

Product Application
Dongxia's portable heat pump units are portability and flexibility make them a convenient cooling solution for various settings.
